This specific project aims to produce 50 000 bottle caps through injection molding. Asme y14 5 2009 version of geometric dimensioning tolerancing gd t standard on engineering drawing and related documentation practices states in its foreword thus this revision contains paragraphs that give a stronger admonition than in the past that the fully defined drawing should be dimensioned using gd t with limit dimensioning reserved primarily for the size dimensions for. Tolerancing gd t mem 201.

google pixel 2 xl price good night komal name wallpaper gold samsung galaxy a5 price golden freddy fnaf 1 2 3 4 google earth google maps street view 2019 google pixel 2 xl camera sample google pixel 2 xl display price in india google pixel 2 xl price in pakistan

Engineering Drawings Gd T For The Quality Engineer

5 Steps To Creating Gd T Drawings For Superior Quality

Geometric Dimensioning And Tolerancing Wikipedia

Engineering Drawings Gd T For The Quality Engineer

20 Gd T Ideas Technical Drawing Mechanical Design Geometric Tolerancing

Examples Of Equivalent Dimensioning Tolerancing Schemes Drafting Standards Gd T Tolerance Analysis Eng Tips

Gd t and the quality engineer.

Gd t drawing examples. Lets learn about different gd t symbols with examples. In the following case study we show an example of gd t in use in solidworks. That is a so called square tolerance with gd t the tolerance is expressed as a round area. Tolerances and why do we need them.

Since variation from the drawing is inevitable the acceptable degree of variation must be specified. This will allow you to understand the intent of the product designer which will allow you to assess the conformance of a unit coming off of your production line. Engineering drawing and design by d. Review the slides use your reference material to find the errors.

Geometric dimensioning and tolerancing by d. As a quality engineer you will be expected to be able to read and interpret engineering drawings and the gd t associated with that drawing. Gd t is the vocabulary of engineering drawing. It comes in useful if a feature is to be defined on a drawing that needs to be uniformly flat without tightening any other dimensions on the drawing.

For example without gd t the tolerance on a hole center is often x and y plus or minus some amount. These will include a reference to a datum in the feature control frame. When it comes to gd t there is a lot of information available describing how to apply gd t to the drawing. We want to control the feel and force with which the caps will fit onto the bottle and therefore require good tolerancing specification.

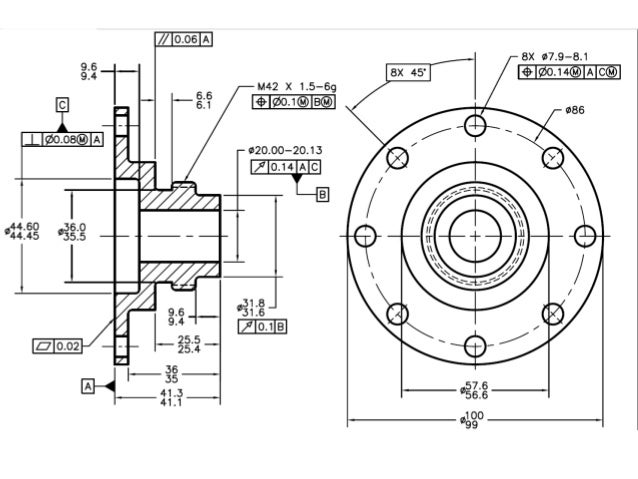

Figure 8 drawing with gd t that represents the three datums in the preceding example. There are many symbols used in gd t. Different types of tolerances. Department of mechanical engineering and mechanics today s objectives.

In this post we cover some important rules basic concepts and gd t symbols that set you up containing. The following slides contain some errors. Limits of size many different gd t tolerances may be used to control a feature s position or location. 10 8 2009 jcs gdt v examples gd t example drawings review references.

Gd t flatness is a common symbol that references how flat a surface is regardless of any other datum s or features. A simple drawing with gd t symbols.
